Types of Crane Rail Specifications

According to railroad track dimensions and rail track sizes, main crane rail products include QU120 crane rail, QU80 crane rail, QU70 crane rail and heavy steel train rail. Next, we will introduce the details of crane rail specifications.

QU120 Crane Rail

QU120 crane rail is a kind of steel rail with lower height and larger head width and waist thickness. It is used for laying the tracks of crane carts and trolley. It is mainly used for large-scale projects, ports for lifting containers, etc. for gantry cranes. Its load is 100-400tons. It is mainly applied for loading and unloading of heavy equipment and special crane rails for gantry cranes.

QU120 crane rail specifications

• Rail height: 170mm
• Bottom width: 170mm
• Head width: 120mm
• Waist thickness: 44mm
• Material: U71Mn/U75VX
• Theoretical weight: 118.1kg/m

QU80 Crane Rail

QU80 crane rail is also a kind of steel rail with lower height and larger head width and waist thickness. Its load is between QU120 crane rail and QU70 crane rail.

QU80 crane rail specifications

• Rail height: 130mm
• Bottom width: 130mm
• Head width: 80mm
• Waist thickness: 32mm
• Material: U71Mn
• Theoretical weight: 63.69kg/m

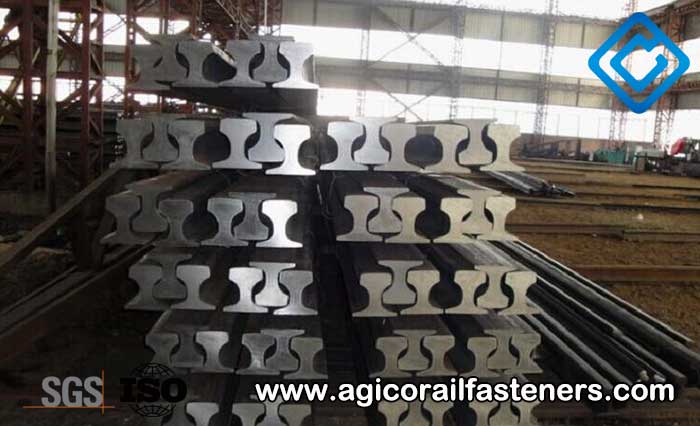

QU70 Crane Rail

QU70 crane rail is a kind of steel rail with lower height and larger head width and waist thickness. It is used for laying the tracks of crane carts and trolley. It is mainly used for large-scale projects, ports for lifting containers, etc. for gantry cranes. Its load is 50-100 tons.

QU70 crane rail specifications

• Rail height: 120mm
• Bottom width: 120mm
• Head width: 70mm
• Waist thickness: 28mm
• Material: U71Mn
• Theoretical weight: 52.80kg/m

Heavy Rail

Railroad track dimensions and rail track sizes are crucial for heavy rail. Heavy steel train rail made in china now stands for high quality. Their material include : 50Mn or U71Mn. The details are in Table as follows.

AGICO has detailed product descriptions and engineering application materials. It is willing to provide first-class services for customers and is willing to cooperate sincerely with friends from all walks of life to develop and develop cooperative projects to jointly advance the development of crane track systems.

As a professional railway enterprise, AGICO is major in railway products with good quality such as steel rail, rail fastening systems, rail fishplate, rail tie plate, rail bolt, railroad spikes, steel dog spike, etc. They are exported all over the world. Depending on more than ten years of export experience, we can offer the most competitive price and highest quality for our customers all over the world because we are the factory. In the other side, we can deal with the international business freely because we have an experienced team in the international department. They can offer the best service to our customers. AGICO owns rich experience and advanced equipment in railway accessories. We can help you solve the above problems!

Buy railroad rail, crane rail, heavy rail, come to AGICO. We sincerely seek reliable cooperators abroad to market the world. Welcome to contact with us!
